Wall Mount DC CCTV Power Supply

  • Wall Mount DC CCTV Power Supply
  • Wall Mount DC CCTV Power Supply
  • Wall Mount DC CCTV Power Supply

Wall Mount DC CCTV Power Supply

    Payment Type: L/C
    Terms of Trade: FOB
    Min. Order: 100 Bag/Bags
    Delivery Time: 25 Days
    Productivity: 1000000
    Brand: STEADY
    Transportation: Ocean,Land,Air
    Place of Origin: Guangdong China
    Supply Ability: 1000000
    Certificate: FCC/CE.ROHS/CCC

Basic Info

Model No.: STD-TMJN03-12-7Z

Product Description

The 12V 3A 36W Power Supply 12VDC is a centralized control power supply for cameras equipped with metal casing protection.Power Distribution Unit can be installed on the wall.Every Boxed Power Supply Ups 100% enough power and 100% 8 hour burn-in test.The Power Supply Accessories interior is spacious and unique design, you can put a 4.5Ah~7Ah battery inside. 12V Switch Mode Power Supply have CE FCC ROHS certidications.Low noise and ripple. Our company all Boxed Power Supply insist OEM and ODM.MOQ 300PCS.

Product Description

Model

STD-TMJN03-12-7Z

STD-TMJN05-12-7Z


Input

voltage range

100-240V~

Frequency Range

50/60Hz

Efficiency

≥83%

≥84%

Alternating current

1A Max

2A Max

Inrush current

≤40A(120V~full load);≤60A(230V~full load

Leakage current

≤3.5mA/3000V~

≤3.5mA/3000V~

Applicable battery specifications

12V/7Ah,Built-in


Output

DC voltage

12V

12V

Rated current

3A

5A

Rated power

36W

60W

Ripple and noise

≤200mV

Voltage adjustment range

11—13.8V

Linear adjustment rate

±0.5%

±0.5%

Load adjustment rate

±2%

±2%

Load loss

≤1.5W

≤1.5W

Start, rise time

≤3s,≤200ms(120V~full load);≤3s,≤200ms(230V~full load

Hold time

≥10ms




Protection

Overcurrent

120%—150%

Protection mechanism: output lock is closed, automatic recovery after removing the fault

Overvoltage

20V Max

Protection mechanism: output lock is closed, automatic recovery after removing the fault

Short circuit

Protection mechanism: output lock is closed, automatic recovery after removing the fault



Environment

Operating temperature

-2045

Working humidity

20%—90% RH,No condensation

Storage temperature and humidity

-256510%95% RH

Temperature Coefficient

±0.03%/℃(0—50℃)

Anti-vibration performance

5—44Hz,10 minutes/cycle, duration 60 minutes


Safety certificate

Pressure resistance

Input and output: 3000V~; Input and shell: 1500V~; Output and shell: 500V~

Isolation resistance

Input and output; input and shell; output and shell: 100M Ohms/500VDC/25/70%RH

CE Certification

EN 62368-1:2014

FCC Certification

FCC Part 15

Others

MTBF

30000 Hours25℃)

dimension

218×204×76mmLength × width × height

package

Independent packaging; batch: 8pcs/1 CTN


Remarks

1. Unless otherwise specified, all specifications are measured at an input of 230V~, rated load, and 25°C ambient temperature

2. Ripple and noise measurement method: use a 12″ twisted pair, and connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHz bandwidth

3. Error: Including setting error, linear adjustment rate and load adjustment rate

4. For output under low voltage input, please refer to the static characteristic curve

5. For all EMC tests, the test sample is installed on an iron plate with a thickness of 1mm, a length of 720mm, and a width of 360mm.

6. When the altitude exceeds 2000 meters, the ambient temperature drops by 3.5℃/1000 meters

Details Images

power supply 12VDC

Both sides of the product are equipped with threading holes and heat dissipation holes to ensure the quality of the product and easy to use

CCTV power supply

Exquisite and compact white metal frosted body, wall-mounted installation

Boxed Power Supply UPS


Internal structure diagram, 12ADC-4.5Ah~7Ah battery can be installed inside the box


Power Supply Accessories

PCBA board detailed introduction diagram, can also be sold separately

Packing & Delivery


Packaging Details:

1,Regular package inner box inside , outside is strong carton box
2,Be customized following customers in request

Port:

Shenzhen

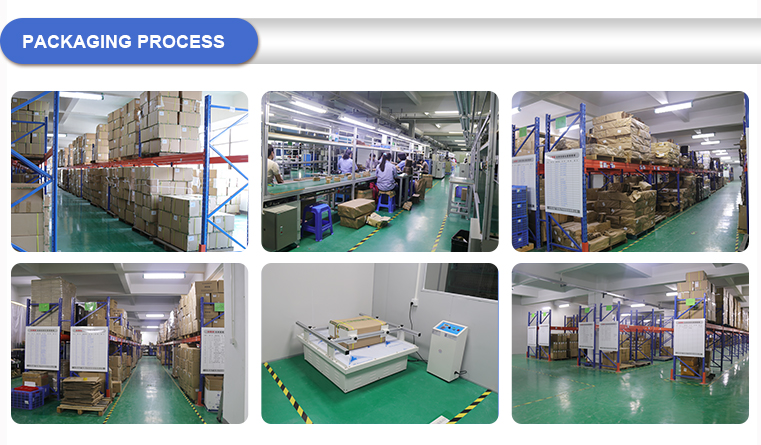

Picture Example:
